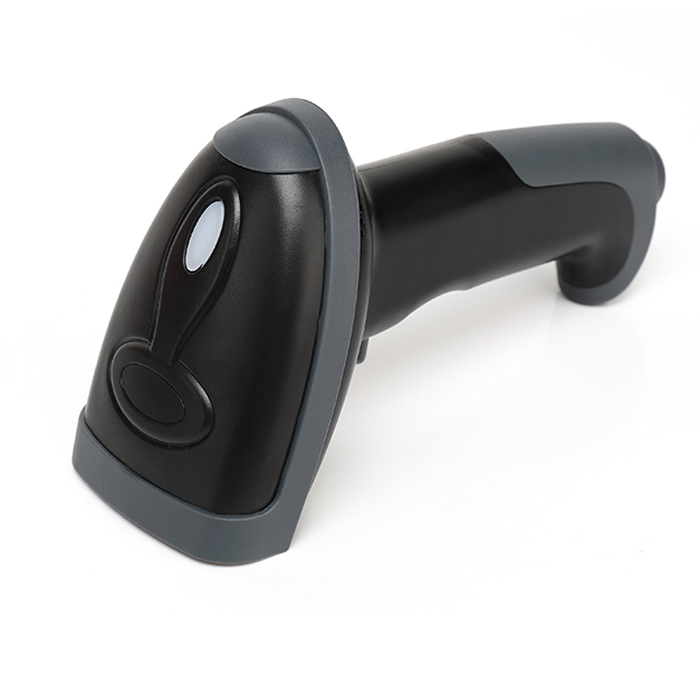

| Model No: | C160 |
| Interface Support: | USB,PS,RS232 |
| Weight: | 150g |
| Dimension: | 180x69x92mm |
| Inquire |
Features
Low price, exquisite design,
32 bit MCU, superior performance
Read all 1D barcode fluently
Support USB,PS,RS232
Application
POS system,Industrial & Manufacturing, Finance industry, Chain & Retail, Logistics & Express,
Sanitary & Medical Services, Government & Public utility etc.
Specifications
Characteristic | |
Decoding rate | 200 times/sec |
Scan mode | Hand-held |
Print contrast | 35% minimum reflection difference |
Scanning angle | Skew 30° Pitch 65° Roll 55° |
Decode capability | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codabar，industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，China Post…… |
Laser | 650nm laser diode |
Resolution | 0.10mm(4mil) at PCS =0.825 |
Interface | USB2.0、PS/2、RS-232 |
Lighting | Red light prompts if electrify Green light prompts if successful decoding |
Environmental | |
Shock drop test | 30 times 1.5m drops to concrete |
Operating temperature | 0-50℃ |
Storage temperature | -40-60℃ |
Operation humidity | 5%-92% |
Storage humidity | 5%-92% |
Electrical | |
Input Voltage | 5V |
Operating Current | 65mA |
Standby Current | 30mA |
Certification | CE & FCC DOC compliance |
Indicator | Beep |
Cable | Straight 1.8M |
Physical | |
Weight | 150g, without cable |
Package weight | 303g |
Product dimension | 180*69*92mm (L*M*H) |
Package dimension | 185*110*85mm (L*M*H) |
